Hmmm,

Possible a future upgrade. I've got enough on my plate thanks!!

Steve
_________________
Front Wheel Drive is the Devil's work.
Back to top
View user's profile Send private message
ideola



Joined: 01 Oct 2004
Posts: 15451
Location: Woodstock IL

PostPosted: Thu Oct 09, 2008 7:20 am    Post subject: Reply with quote

bass gt wrote:
a) Width between inner edge of rear chassis rails
b) distance from gearbox beam rear edge to rear box section, behind spare wheel well
c) height and width of torque tube tunnel
d) Diameter of torque tube
e) Distance frm top of rear chassis rail to bottom of inner arch.

  1. 37.75"
  2. 27.5"
  3. This is not so easy...the tunnel is tapered, not straight, and it flairs out at the "bottom"
    1. Total height is approximately 12"
    2. Height from the top of the tunnel to the top of the rear torque tube support bracket is 7"
    3. Height from the top of the tunnel to the bottom of the rear torque tube support bracket is 10"
    4. Width at the top of the tunnel is 4.25"
    5. Width at the top of the rear torque tube bracket (i.e. 7" down) is 5.3125"
    6. Width at the bottom of the rear torque tube bracket (i.e. 10" down) is 5.625"
    7. It then flares out from there and is somewhat irregular along the length of the tunnel

  4. OD of the torque tube is roughly 3.5". I don't have proper calipers, but judging based on the size of the u-bolts used to clamp on the exhaust hangers, I'd say 3.5" is close enough
  5. This isn't so easy either. Firstly, I don't exactly which part of the inner arch you're referring to...it tapers up from the bottom of the rear wheel well back to the bumper. At it's deepest point, the distance from the side frame rails down to the deepest part of the inner arch is ~14". However, the rear frame rail is about 1" lower than the two side rails.
Hope this helps, let me know if you need more. I won't be able to crawl around under the other chassis until tomorrow or Friday.
_________________
88 924S SE | 82 931 Holbert | 81 Euro 931 | 81 Weissach | 80 US 928 | 80 US 931 '941' | 78 D-Prod Replica | 78 w/D-Prod kit | 78 Poli-Form | 78 Limited Edition
Back to top
View user's profile Send private message
bass gt



Joined: 02 Dec 2004
Posts: 971
Location: Johannesburg for now!!

PostPosted: Thu Oct 09, 2008 8:49 am    Post subject: Reply with quote

Dan,

Thats great,i really do appreciate it. i can now make up a set of drawings to see where things will fit.
So by your measurements, there seems to be about 4 to 5 inches above the TT for me to play with.

Steve
_________________
Front Wheel Drive is the Devil's work.
Back to top
View user's profile Send private message
ideola



Joined: 01 Oct 2004
Posts: 15451
Location: Woodstock IL

PostPosted: Thu Oct 09, 2008 8:50 am    Post subject: Reply with quote

bass gt wrote:
Dan,

Thats great,i really do appreciate it. i can now make up a set of drawings to see where things will fit.
So by your measurements, there seems to be about 4 to 5 inches above the TT for me to play with.

Steve

4 at the most, and don't forget about the shift rods.
_________________
88 924S SE | 82 931 Holbert | 81 Euro 931 | 81 Weissach | 80 US 928 | 80 US 931 '941' | 78 D-Prod Replica | 78 w/D-Prod kit | 78 Poli-Form | 78 Limited Edition
Back to top
View user's profile Send private message
bass gt



Joined: 02 Dec 2004
Posts: 971
Location: Johannesburg for now!!

PostPosted: Thu Oct 09, 2008 8:51 am    Post subject: Reply with quote

Dan,

Only 1 shift rod as i am using the 968 set up. So i think i can squeeze a couple of 32mm alu pipes into the top of the tunnel. BWHAAA, BWHAAAA
_________________
Front Wheel Drive is the Devil's work.
Back to top
View user's profile Send private message
ideola



Joined: 01 Oct 2004
Posts: 15451
Location: Woodstock IL

PostPosted: Thu Oct 09, 2008 1:27 pm    Post subject: Reply with quote

Yeah, and don't forget about the shifter foam...but that might be gone too
_________________
88 924S SE | 82 931 Holbert | 81 Euro 931 | 81 Weissach | 80 US 928 | 80 US 931 '941' | 78 D-Prod Replica | 78 w/D-Prod kit | 78 Poli-Form | 78 Limited Edition
Back to top
View user's profile Send private message
ideola



Joined: 01 Oct 2004
Posts: 15451
Location: Woodstock IL

PostPosted: Sun Nov 09, 2008 2:19 am    Post subject: Reply with quote

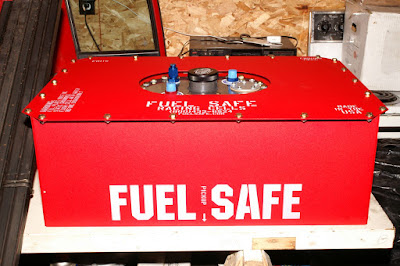

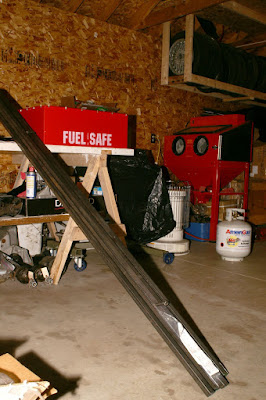

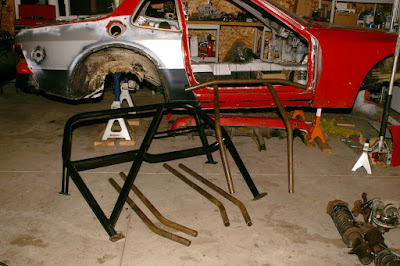

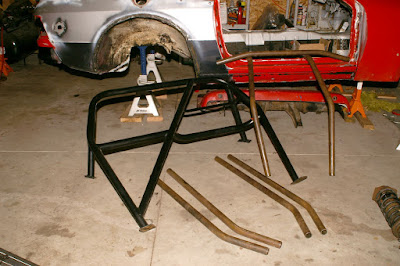

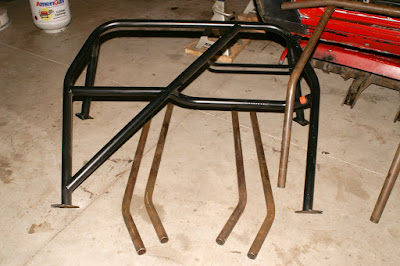

Hmmm....what's going on in Ideola's garage this weekend??? Here's a hint:



_________________
88 924S SE | 82 931 Holbert | 81 Euro 931 | 81 Weissach | 80 US 928 | 80 US 931 '941' | 78 D-Prod Replica | 78 w/D-Prod kit | 78 Poli-Form | 78 Limited Edition


Last edited by ideola on Sat Jul 18, 2009 3:17 am; edited 1 time in total
Back to top
View user's profile Send private message
Martijnus



Joined: 29 Dec 2006
Posts: 2019
Location: Netherlands

PostPosted: Sun Nov 09, 2008 4:49 am    Post subject: Reply with quote

what's the capacity of such a fuel cell?
And can you explain what the advantage of such a thing is? I guess it's more safe than a fuel tank, which is good for on the track...

Is it just a box or does it contain some sort of kevlar bag or something?
_________________
"Rule: Turbo's make torque, and torque makes fun." (C. Bell)

924 "50-jahre", 1981.
MSII/extra, LPG, ITB's, 5lug.
To be turbo'ed in a while.
Killed her at the Nurburgring, Porscheless at the moment
Back to top
View user's profile Send private message Send e-mail MSN Messenger
ideola



Joined: 01 Oct 2004
Posts: 15451
Location: Woodstock IL

PostPosted: Sun Nov 09, 2008 5:28 am    Post subject: Reply with quote

Capacity is 15 gallons

Advantages are safety, form factor, relocating the fuel tank to accommodate other innovations under the rear deck, and most of all, E85 safe
_________________
88 924S SE | 82 931 Holbert | 81 Euro 931 | 81 Weissach | 80 US 928 | 80 US 931 '941' | 78 D-Prod Replica | 78 w/D-Prod kit | 78 Poli-Form | 78 Limited Edition
Back to top
View user's profile Send private message
huckster



Joined: 22 Dec 2006
Posts: 115
Location: Burnaby B.C.

PostPosted: Sun Nov 09, 2008 8:05 am    Post subject: Reply with quote

Nice work. Wish i had a work space like that.
_________________
77.5 project car have never driven. burgundy
79 parts car sea foam. blue new clutch and shifter bushings
79 driver yellow new shocks water pump shifter bushings
96 ford escort sw
Back to top
View user's profile Send private message
ideola



Joined: 01 Oct 2004
Posts: 15451
Location: Woodstock IL

PostPosted: Tue Nov 11, 2008 11:24 pm    Post subject: Reply with quote

Update: photo shoot from this weekend's efforts. Many thanks to Mr. Todd Quenneville, fabricator extraordinaire, courtesy of the Pub Racing team

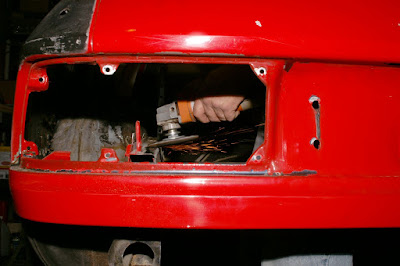

First we decided to complete remove ALL of the material in the rear hatch area. I was originally thinking about retaining the stock muffler mounting location and shield (rear LHS of the car), as well as the lip of the original deck sheet metal which is where all of the stock fuel and brake lines mount. Also, I had cut the main decking out with a recipricating saw, and Todd being the perfectionist he is, wasn't satisfied with leaving all the stock welds and stuff in place. So we got out the sawzall and the spot weld remover and had at it.

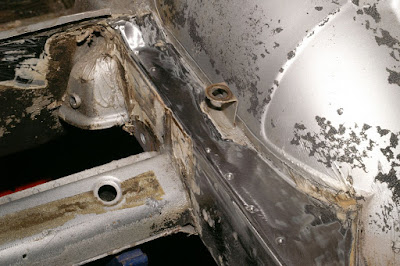

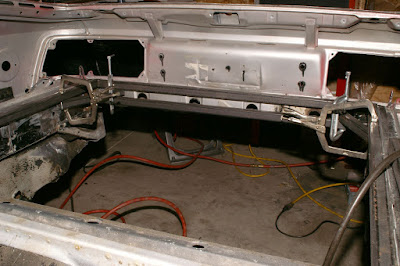

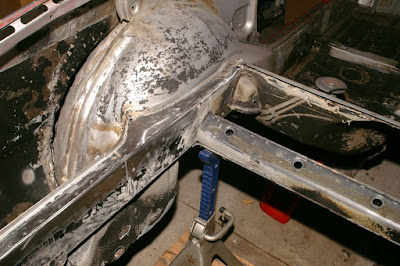

The next task was to clean up all the metal to prep for the welding. Todd in action with the flap wheel:


All clean and ready for fabrication to begin:


_________________
88 924S SE | 82 931 Holbert | 81 Euro 931 | 81 Weissach | 80 US 928 | 80 US 931 '941' | 78 D-Prod Replica | 78 w/D-Prod kit | 78 Poli-Form | 78 Limited Edition


Last edited by ideola on Sat Jul 18, 2009 3:20 am; edited 1 time in total
Back to top
View user's profile Send private message
ideola



Joined: 01 Oct 2004
Posts: 15451
Location: Woodstock IL

PostPosted: Tue Nov 11, 2008 11:37 pm    Post subject: Reply with quote

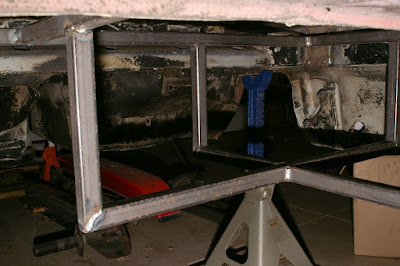

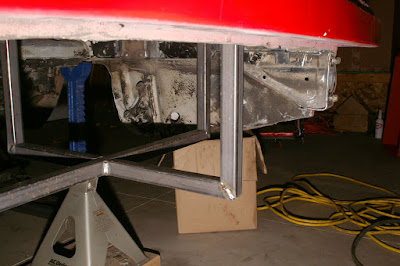

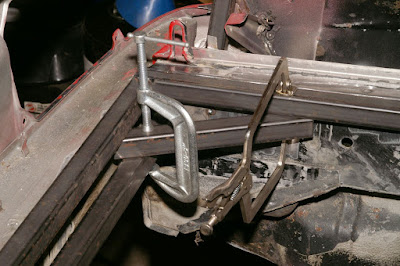

The sheet metal in the rear frame rails is actually surprisingly thin and flimsy. Since we had plenty of material (48 feet of 1" square tube stock), Todd suggested that we reinforce the frame rails all the way 'round, welding the tube flush with the surface. This will later provide mounting points for Dzus fittings which will be used to secure the aluminum bulkhead that will be installed upon completion. Also, we used some small metal plates, about 3" x 4" x 1/8" steel, as reinforcements on the framerail itself. These were mounted under the lateral reinforcements, and we used these to weld the main fuel cell cage supports.

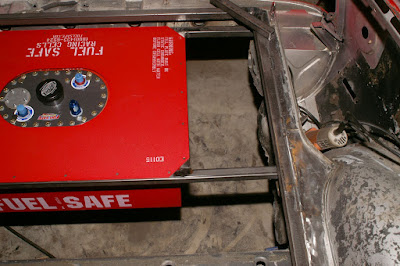

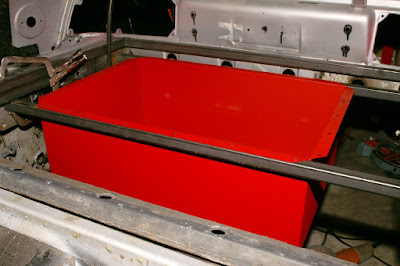

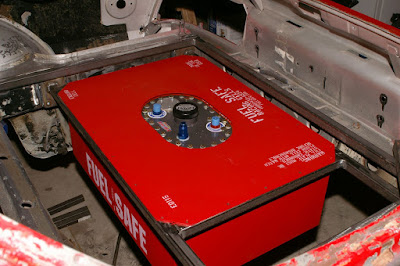

After the upper reinforcements were tacked in, the plates mounted to the frame rails, and the two lateral main supports were tacked in, we test fit the fuel cell box:

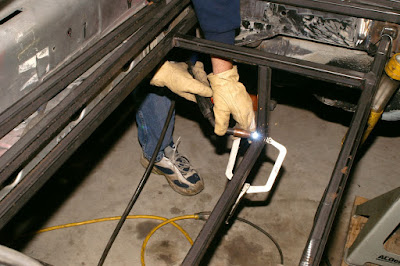

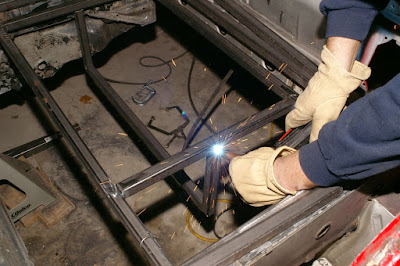

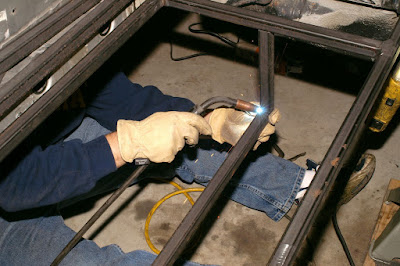

Time to make it permanent. Pull down your welding visor

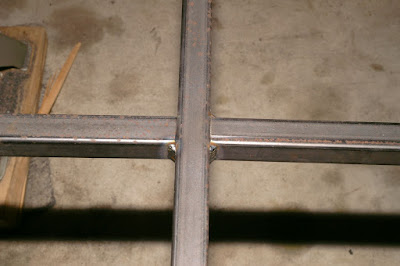

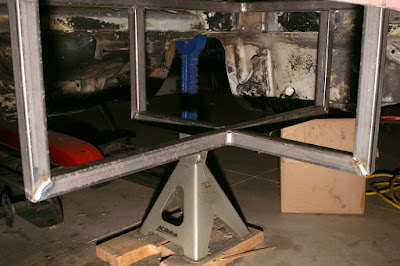

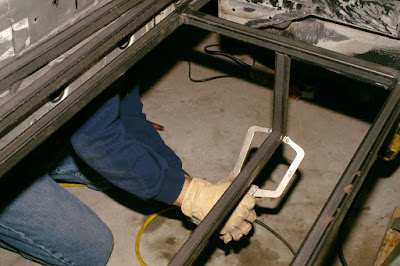

Next, the cross braces were added in, and time for another test fit of the cell:


We decided not to mount the fuel cell exactly centered, which was my first inclination. However, after conferring with Todd, we decided to mount it as far to the RHS as possible. This accomplishes two primary goals: it will counter balance the driver's weight, and it leaves a perfect space on the LHS for mounting heat shields and a muffler for street use (if desired):

_________________
88 924S SE | 82 931 Holbert | 81 Euro 931 | 81 Weissach | 80 US 928 | 80 US 931 '941' | 78 D-Prod Replica | 78 w/D-Prod kit | 78 Poli-Form | 78 Limited Edition


Last edited by ideola on Sat Jul 18, 2009 3:23 am; edited 1 time in total
Back to top
View user's profile Send private message
ideola



Joined: 01 Oct 2004
Posts: 15451
Location: Woodstock IL

PostPosted: Tue Nov 11, 2008 11:47 pm    Post subject: Reply with quote

Day two: time to finish the under side of the cage. Visors down!

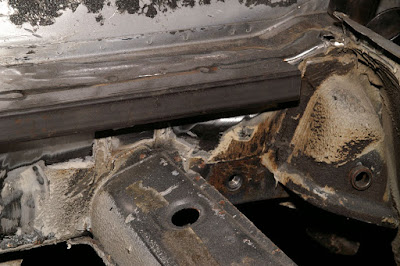

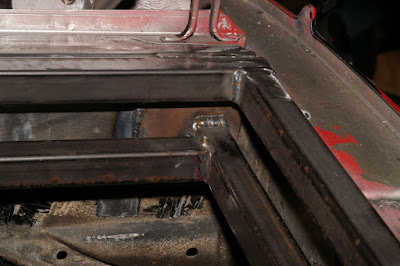

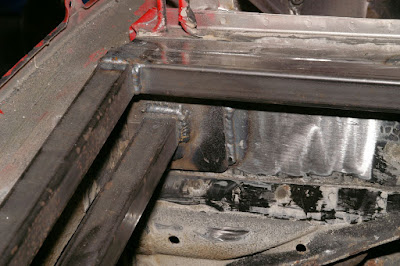

Closeups of the reinforcing plates on the frame rails:

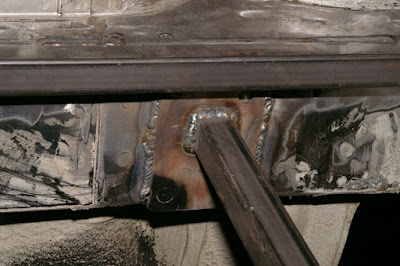

Closeups of the reinforcing bars stitched onto the frame rails:

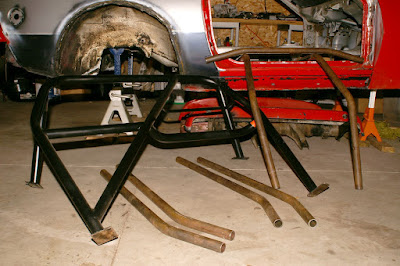

Finished Cage:


_________________
88 924S SE | 82 931 Holbert | 81 Euro 931 | 81 Weissach | 80 US 928 | 80 US 931 '941' | 78 D-Prod Replica | 78 w/D-Prod kit | 78 Poli-Form | 78 Limited Edition


Last edited by ideola on Sat Jul 18, 2009 3:59 am; edited 1 time in total
Back to top
View user's profile Send private message
Scorpio



Joined: 05 Jul 2007
Posts: 1956
Location: Brisbane, Australia

PostPosted: Wed Nov 12, 2008 6:58 am    Post subject: Reply with quote

ok you win
_________________
1979 NA
MS1..EFI..
GARRETT T25 TURBO
BILSTEIN SHOCKS
GT BASED CUSTOM BODYKIT

Brisbane , Australia
Think mean think fast
all youll see is
my Porsches Arse!!!
Back to top
View user's profile Send private message
Joes924Racer



Joined: 03 Nov 2002
Posts: 11960
Location: Oregon, Denver Colorado native!

PostPosted: Wed Nov 12, 2008 12:25 pm    Post subject: Reply with quote

How much was the fuel cell and where did it come from looks like something from summitt racing ....
_________________
1979 porsche 924 Na
1980 porsche Turbo 931GT Replica
Have u ever driven a turbo.
Back to top
View user's profile Send private message Send e-mail Visit poster's website AIM Address
