[Paul]

I'm thinking it would be a great resource to have a thread where we post a picture of every year's US and ROW underhood stickers. This is the sticker that describes how to adjust the timing, the idle, the spark plug gap, etc.

Here's a US 1980 924 Turbo:

http://im1.shutterfly.com/procserv/47b3db05b3127cce9cba461f68f400000026108AZuGrlozZtE
_________________
White 87 924S "Ghost"
Silver 98 986 3.6l 320 HP "Frank N Stein"
White 01 986 "Christine"
Polar Silver 02 996TT. "Turbo"
Owned and repaired 924s since 1977
Porsche: It's not driving, it's therapy.

[924guy]

1982 924 turbo (build date 11/81):




_________________
Eric
78 924
82 931 SE "smokey"
99' VehiCross
Y2K Honda Insight
http://www.cardomain.com/id/924Guy
Performance by Pasha

[StienbargerR]

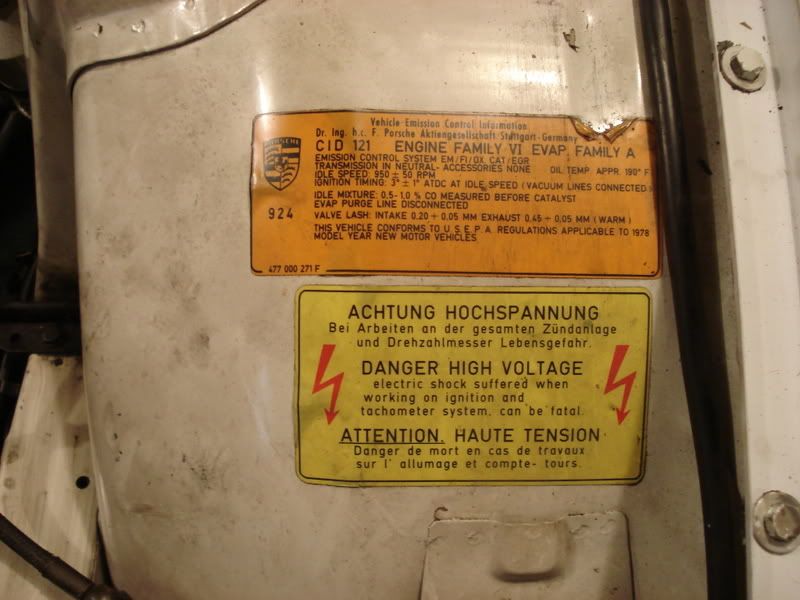

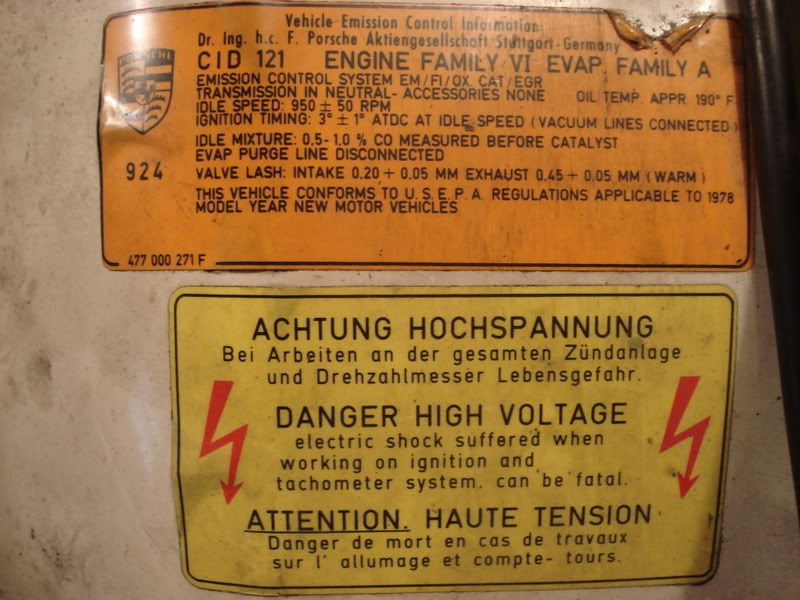

1978 924 US spec





No diagram on this one

Ryan
_________________
1978 924 NA
-250lb lowering springs, Euro Pistons

[Paul]

Its there, thanks for posting.
_________________
White 87 924S "Ghost"
Silver 98 986 3.6l 320 HP "Frank N Stein"
White 01 986 "Christine"
Polar Silver 02 996TT. "Turbo"
Owned and repaired 924s since 1977
Porsche: It's not driving, it's therapy.

[Smoothie]

Mine's a bit mangled at its' right side by the timing retard connector, but otherwise readable (and features the spark plug torque - 22 ft-lb). Otherwise it's the same as 924guys' ('82, US, 931).

Suggestion? - Maybe type in info that's not easily readable.

(click each for larger pic)

_________________
"..it's made in Germany. You know the Germans always make good stuff."


'82 924T, US version, dark green metallic, 5 speed Audi 016G gearbox

[Mike924]

I don't think UK cars (and poss. ROW?) have such detailed information. The only stickers my car has are the high-voltage warning above the ECU and one that tells you how to bleed the coolant.
_________________
1985 Porsche 924 'Lux', Kalahari Beige (my ex)
1993 Porsche 968 Coupe, Midnight Blue, 6 spd

'There is no substitute for a little grease under your fingernails.' - Chrenan, 924board.org

[Rasta Monsta]

Well, that is one explanation, Mike. . .


_________________
Toofah King Bad

• WeiBe (1987 924S 2.5t) - 931 S3

[Jaf]

My UK car doesn't have a sticker either. Actually she only has the coolant bleed one.

Jaf
_________________
1978 924na

[Rasta Monsta]

Hmm, according to the PET, there are several non-country-specific stickers, and special ones for Sweden, Australia, and France.
_________________
Toofah King Bad

• WeiBe (1987 924S 2.5t) - 931 S3

[joecitizennn]

Pics coming tomorrow. Too interesting a thread to loose.
_________________
87 924s
88 924SE gone
447 hp cgt clone
87 924S gone
84 944 sold
83 944 sold
89 turbo S LSD, ABS etc
86 951 white rocket
85 944 sport everything.
84 944 sold.
87 944 sold

[Smoothie]

Anyone got a 924S vac line routing sticker (or other diagram of same) to post?
_________________
"..it's made in Germany. You know the Germans always make good stuff."


'82 924T, US version, dark green metallic, 5 speed Audi 016G gearbox

[joecitizennn]

[2Fast]

K, 1979 Porsche 924 California car! (Ignore the overspray the previous owner got on them )






_________________
=====>Alex<=====
1979 Porsche 924 NA 5spd
1979 Parts Porshce 924 NA 5spd

[Raceboy]

My 1984 Euro 924 has underhood sticker with detailed information, I'll take a pic on weekend.
_________________
'83 924 2.6 16v Turbo, 470hp
'67 911 2.4S hotrod
'90 944 S2 Cabriolet
'78 924 Carrera GT replica
'84 928 S, sold
'91 944 S2, sold
'82 924S/931 "Gulf", sold
'84 924, turbocharged, sold.
http://www.facebook.com/vemsporsche

[Smoothie]

Anyone have more stickers and/or other vacuum line routing diagrams to add?

Raceboy - let us know when you get your film back. (nyuk nyuk)
